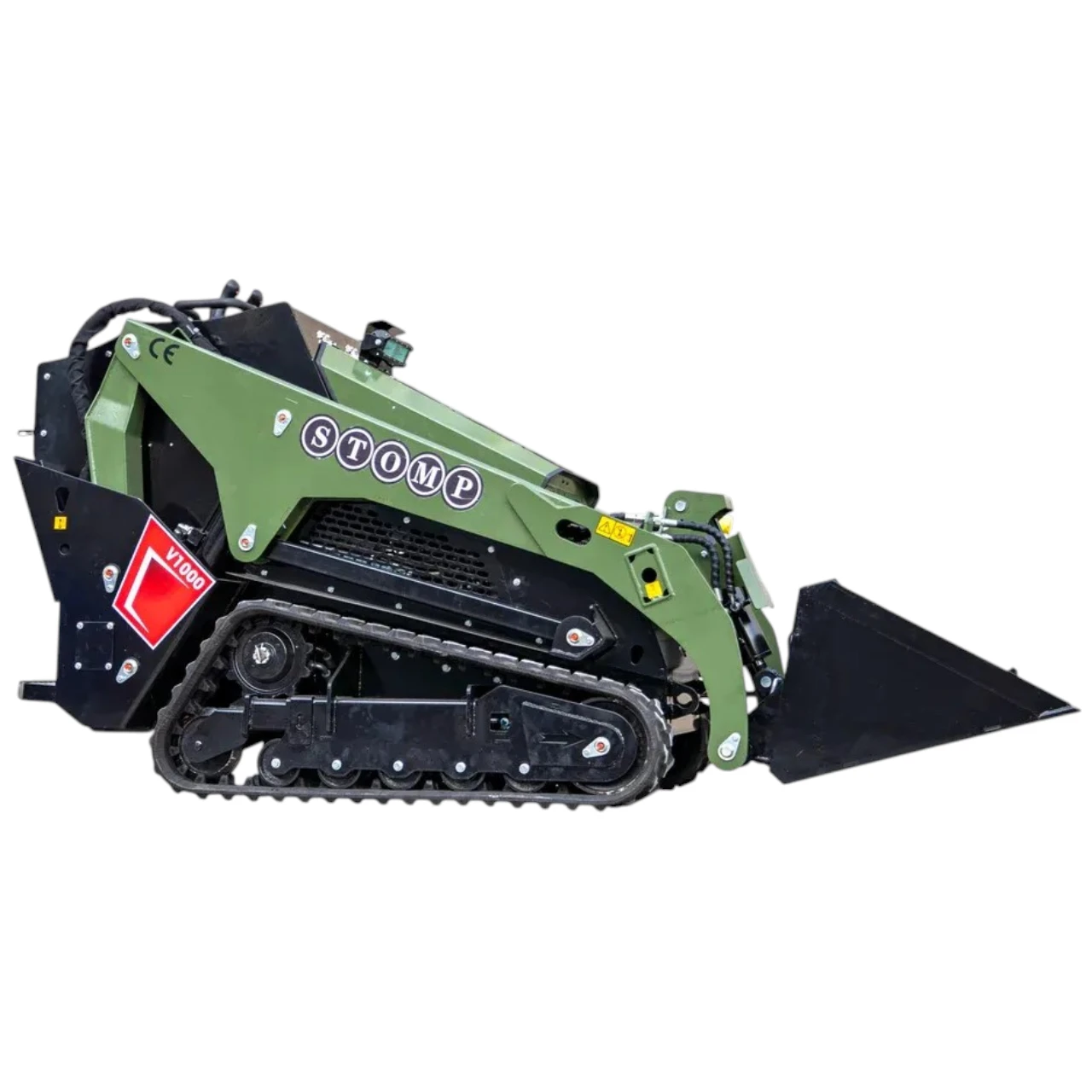

TYPHON Stomp V1000 24HP Kubota D1105 Water Cooled Diesel Skid Steer Pilot Control

The TYPHON STOMP V1000 is a compact yet high-output 3,300 lb skid steer loader crafted for confined locations such as gardens, small building sites, farms, and urban projects. Its compact footprint makes possible it to operate effortlessly in areas where larger machines cannot, while its adaptable attachment capability allows digging, lifting, drilling, leveling, breaking, and site cleanup with controlled performance.

Intuitive controls and a comfortable operator area make operation simple and productive. Bright LED work lights assist keep excellent visibility in all weather and lighting conditions, while quick attachment changes keep productivity high. This STOMP V1000 is ideal for landscaping, residential construction, agricultural work, load handling, and warehouse applications.

TYPHON STOMP V1000 Skid Steer – Key Includes:

1. Purpose-made for Narrow Spaces

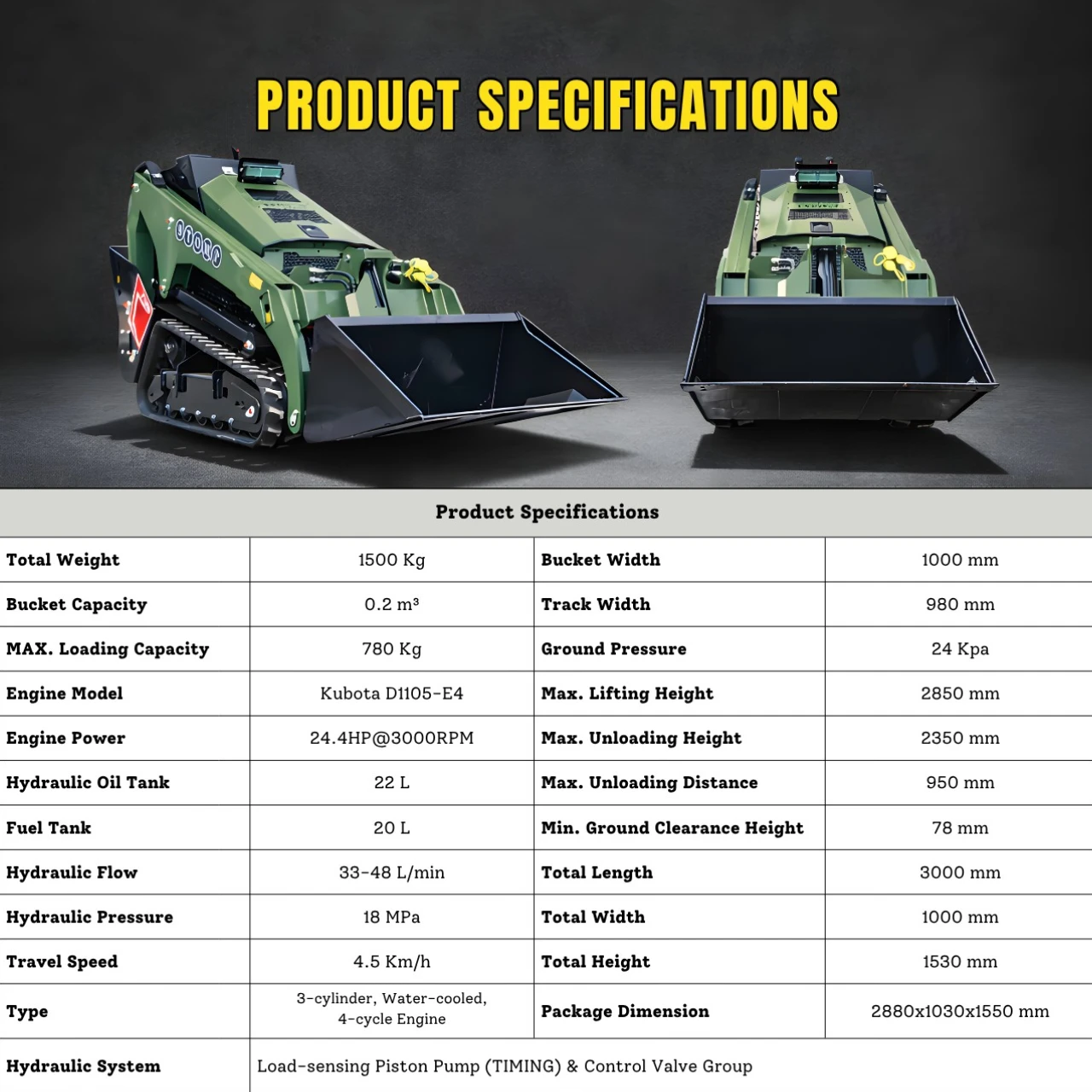

The TYPHON Stomp V1000 is compact yet high-output, which makes it ideal for tight access areas such as gardens, orchards, greenhouses, tunnels, and small construction sites. With a 38.6 in chassis width, 39.4 in bucket width, 9.84 ft overall length, and 60.2 in height, it can easily access locations where larger machines are restricted.

A 0–69.3 in turning radius combined with 360° mobility makes possible controlled movement in restricted areas. The low 3.5 psi ground pressure, 3.1 in ground clearance, and 30° climbing ability deliver stable operation on soft soil, farmland, muddy construction sites, slopes, and uneven terrain, supporting prevent sinking or surface damage. The maximum lifting height of 9.36 ft assists productive load handling and loading tasks.

2. Get Jobs Done

STOMP V1000 is made to handle real-world workloads with confidence. It digs dirt, sand, and gravel, lifts and transports loads reaching 1,720 lb (1,720 lb rated operating capacity), levels and clears ground; drills holes, breaks through hard surfaces, and efficiently loads or unloads trucks and containers.

With quick-swap attachments and an auxiliary hydraulic flow of 33–12.68 GPM, This machine assists a broad variety of hydraulic tools including augers, breakers, grapples, trenchers, and sweepers. Its load-sensing hydraulic system allows simultaneous operation of the boom and attachments, reducing cycle time and increasing job productivity by eliminating unnecessary interruptions.

3. Compact and High-output

Made to provide robust performance in a compact package, the STOMP V1000 is driven by a Kubota D1105-E4 diesel engine producing 24.4 HP (24.4 HP) at 3,000 rpm; this 3-cylinder, water-cooled, 4-cycle engine meets EU Stage V / EPA Tier 4 Final emissions standards, combining power, fuel productivity, and proven long-term reliability, while its 2.8 MPH travel speed assists keep smooth, productive movement across job sites with excellent control and stability, which makes it ideal for both compact jobsite areas and demanding job settings.

With 2,611 PSI working pressure, and a load-sensing hydraulic system, the machine supplies stable, continuous power with minimal energy loss, even during heavy-load or long-duration operations. Its 3,307 lb operating weight and reinforced structure deliver robust stability and resistance to deformation during lifting, excavation, and loading tasks. A 5.28 gal diesel fuel tank and 5.81 gal hydraulic oil tank assist extended workdays with reduced refueling downtime.

4. Comfortable Controls

The TYPHON Stomp V1000 includes full hydraulic pilot controls for accurate digging, lifting, and maneuvering. Light control force enhances accuracy while significantly reducing operator fatigue, supporting both experienced and new operators to work confidently and efficiently. This operator’s standing platform is fitted with foam padding to cut vibration and fatigue during extended working hours, improving overall comfort and control.

A clear operator panel displays fuel level, oil temperature, voltage, and hour meter for easy monitoring of machine status. Bright LED work lights deliver excellent visibility for safe operation in low-light or night conditions.

5. Superior Materials & High-Quality Components

• Kubota Diesel Engine – Proven reliability, robust torque, fuel productivity, and low-emission compliance
• Full Hydraulic Pilot Control System – Smooth, accurate operation using reduced operator fatigue
• TIMING load-sensing piston pump and Load-sensing control valve group – Productive power delivery using fast response and minimal energy loss
• Simultaneous Boom & Attachment Operation – Promotes uninterrupted lifting, digging, and loading crafted for higher productivity
• Auxiliary Hydraulic Flow (33–12.68 GPM) – Compatible using augers, breakers, grapples, trenchers, sweepers, and more
• Rugged Structural Frame – Reinforced construction crafted for excellent load stability and extended working life
• Quick-Swap Attachment Interface – Fast tool changes to minimize downtime and enhance job productivity
• Clear Instrument Panel – Displays fuel level, oil temperature, voltage, and hour meter engineered to serve easy monitoring
• Commercial-grade Electrical & Battery System – reliable starting and stable performance in all working conditions
• Bright LED Work Lights – Assists keep safe handling in low-light, night, or poor weather environmentsEasy
• Maintenance Design – Well-arranged service points cut downtime and long-term operating costs

Your construction jobs will reach new heights with the TYPHON STOMP V1000 Mini Excavator. Compact, tough, and productive, this trench digger machine is your ideal companion for successful projects at a mini scale. Trust TYPHON Machinery for reliability, toughness, and performance that surpass expectations. Elevate your construction game with the TYPHON STOMP V1000 – The ultimate solution for all your excavation needs!
