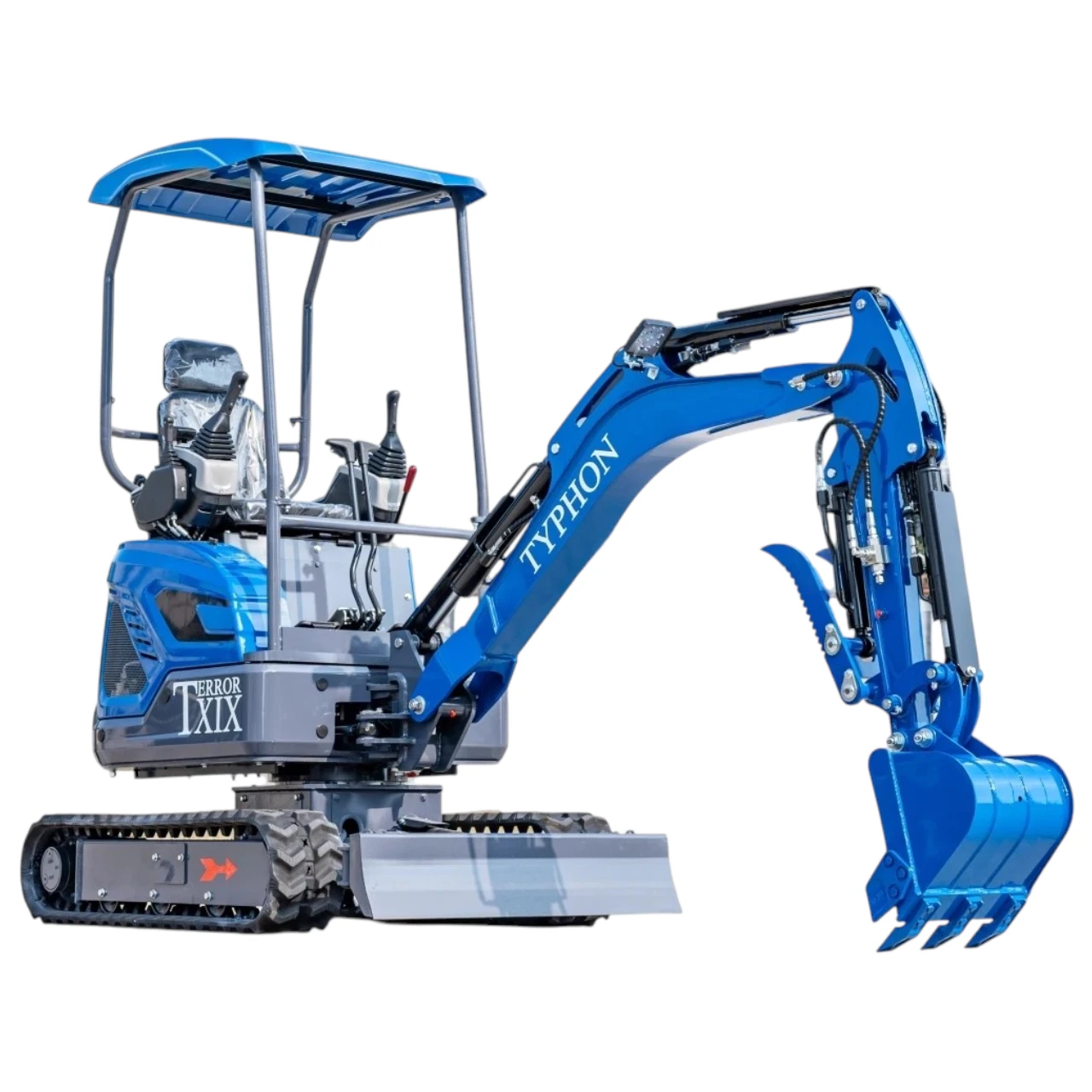

TYPHON TERROR XIX STORM Mini Excavator – 4000lbs Trench Digger with Boom Swing, Canopy, Retractable Tracks

engineered to serve Small Projects: The TYPHON TERROR XIX STORM yard excavator was specially engineered to serve small building projects, showcasing a compact but consistent design that allows easy maneuverability in small areas, including farms, gardens, public spaces, parks, orchards, farms, and more!

Many different Uses: Thanks to its compact and easy-to-manage design as well as a flexible swing boom, this trencher digger machine is a practical choice made for drilling, digging, grabbing, bull-dozing, ditch-cleaning, small excavations, rock-breaking, landscaping or construction purposes.

compact but Tough: Our ditch digger machine produces a small but high-performance Kubota D902 engine for smooth functionality and easy maintenance. Compact but robust, this excavator can withstand intensive building projects without sacrificing performance. Small but robust Kubota D902 engine, a vertical, water-cooled, 3-cylinder, 4-cycle IDI diesel engine with a capacity of 20.4HP at 3600RPM.

Easy-to-manage Design: The micro digger is extremely easy to maneuver even by first-time users, showcasing a 16.3 in wide bucket and platform ground clearance that support simple handling for all excavation, drilling, or bull-dozing jobs. An enhanced track width of 9.1 in increases traction with This ground.

What’s Included: The TYPHON TERROR XIX STORM mini excavator machine comes fitted with 1 x standard digging excavator bucket, as well as 1 x tool box, 1 x canopy, and 1 x digital manual with all This instructions.

Here are some of the amazing produces of our mini excavator:

TERROR XIX’s Rotary Motor is outfitted with a two-way relief valve that serves as a brake valve and protects This rotary motor from excessive instantaneous back pressure. This swing motor comes standard with a bidirectional relief valve (also known as a brake valve). Installing this valve block protects This motor from instantaneously excessive back pressure. Standard models without this valve commonly experience issues like motor shaft breakage and oil leakage from the shaft end. The addition of the valve block significantly lowers the occurrence of these two problems, enhancing the user experience and lowering the failure rate.

TERROR XIX’s Upgraded Triple-Load Sensing Valves and Load-Sensing Triple Pumps are made to harness This full potential of Kubota D902 engines This system supplies higher hydraulic flow and more accurate oil distribution, supporting exceptionally smooth and stable machine operation. The triple pumps can supply oil to different actuators (such as the boom, bucket, and travel motor) independently.

Full Hydraulic Control. Compared to mechanical travel systems, the hydraulic travel pedal valve produces a shorter control stroke, which increases legroom for the operator. Hydraulic control supplies smoother and more accurate flow output, enabling stable climbing and descent on slopes through fine adjustments. The new hydraulic foot pedal for auxiliary functions (e.g., breaker) helps enable for convenient control of the attachment while simultaneously operating the boom and arm. The leftmost pedal controls the breaker, while the rightmost is a spare.

Boom Swing.This left and right deflection angles of 45 degrees adds extra agility to This machine.

Hydraulic control upgrade for the Bulldozer operating handle allows a more accurate control of This height adjustments of the bulldozer while traveling. This upgraded hydraulic operation produces greater convenience and flexibility, enabling the operator to adjust the blade height while simultaneously traveling.

Retractable Tracks with a retractable range of 1-1.16m promote for ease of navigation on narrow paths.

An upgraded triple hydraulic pump that promotes This hydraulic flow to be 15% faster than those on other 4,400 lb excavators. The increase in hydraulic flow can increase the working speed and more operations more effective.

The XIX brings full machine hydraulic control. Compared to mechanical travel systems, the hydraulic travel pedal valve produces a shorter control stroke, which increases legroom for the operator. Hydraulic control delivers smoother and more accurate flow output, enabling stable climbing and descent on slopes through fine adjustments. The new hydraulic foot pedal for auxiliary functions (e.g., breaker) promotes for convenient control of the attachment while simultaneously operating the boom and arm. The leftmost pedal controls the breaker, while the rightmost is a spare.

Three way stop valve. These valves are used to add a hydraulic function, such as an auger or thumb attachment, by rerouting This flow from an existing hydraulic line

Hidden single speed motor use a single-speed final drive motor assembly that is typically built into the sprocket. This design offers a more compact profile and can deliver smoother travel. Single-speed models are best for applications where constant, controlled speed is more important than rapid travel.

The piston travel motor delivers a volumetric operating performance and service life that are 3 to 5 times greater than those of standard motors. It also delivers a 30% increase in output torque, resulting in superior extrication capability and enhanced mobility between worksites. As the piston motor is embedded within the undercarriage, it is effectively protected from impacts and debris during travel and operation.

Additional delivers:

• Mini excavator built for small projects;

• 16.3 In wide excavator bucket;

• 1.41 Cu ft capacity bucket;

• 15 In platform ground clearance;

• Small but robust Kubota D902 engine, a vertical, water-cooled, 3-cylinder, 4-cycle IDI diesel engine with a capacity of 15.8 HP /15.8 HP at 2300RPM and 20.4HP at 3600RPM.

• Outstanding resistance and durability;

• Easy maneuverability using swing boom;

• A robust choice built for public spaces, small construction sites, gardens, farms, orchards, municipal works, parks, roads, landscaping;

• Excellent solution built for drilling, ditch-cleaning, trench digging, bull-dozing, grabbing, rock-breaking, and more;

Your building projects will be successful with The mini excavator machine!
